2011-10-12 NetBSD/FON2405E #2
というわけで、いつのまにやらNetBSD本家にRT3050対応のコードが入っていたので、bootさせてみる…が、何も考えてないのでダメだった。

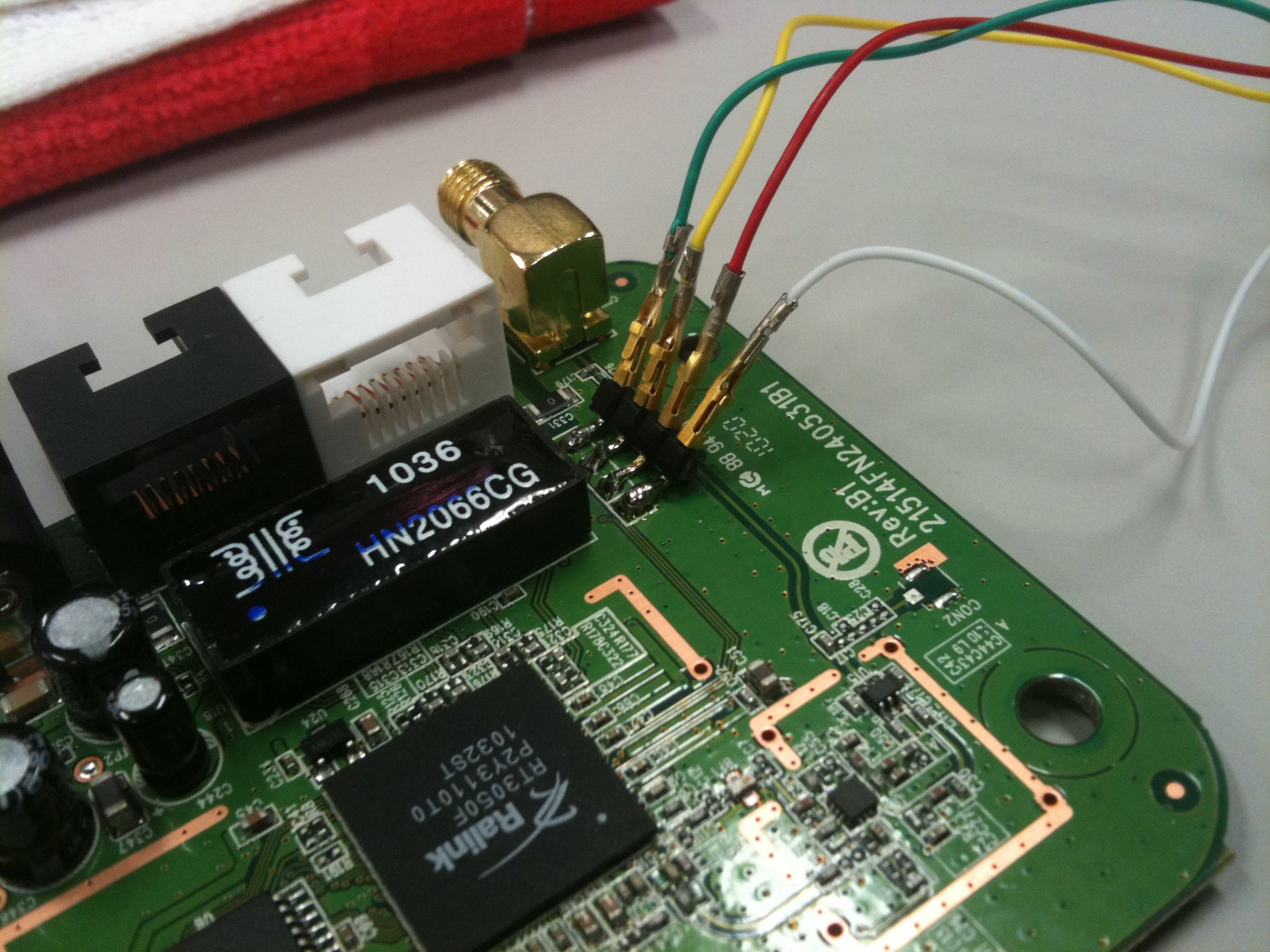

もう一台FON2405Eをゲットしたので、秋月のFT232RLをハンダ付けして、シリアル出した状態にして沖さんに投棄。
並行して、以前沖さんが作ってくれたRT3052対応のpatchあてて、options CONSPEED=57600 を追加したら、見事bootしたー。
ohci0のattachで固まったけど、ここまで動いてしまえばすぐに追えるだろう。マズマズだな。
NetBSD使いのみんなも
U-Boot 1.1.3 (Jan 6 2010 - 07:10:30)
RT3052 # tftp 80010000 netbsd.bin
netboot_common, argc= 3
NetTxPacket = 0x81FE4DC0
Trying Eth0 (10/100-M)
ETH_STATE_ACTIVE!!
Using Eth0 (10/100-M) device
TFTP from server 10.10.10.3; our IP address is 10.10.10.200
Filename 'netbsd.bin'.
TIMEOUT_COUNT=10,Load address: 0x80010000
Loading: Got ARP REPLY, set server/gtwy eth addr (00:02:2a:dd:58:24)
Got it
T #
first block received
################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#############
done
Bytes transferred = 3059056 (2ead70 hex)
NetBootFileXferSize= 002ead70
RT3052 # go 80010000
## Starting application at 0x80010000 ...
Enabled early console
pmap_steal_memory: seg 0: 0x3 0x3 0x10 0x10
pmap_steal_memory: seg 0: too small for 142 pages
pmap_steal_memory: seg 1: 0x339 0x339 0x1fff 0x1fff
Loaded initial symtab at 0x80288610, strtab at 0x802b11cc, # entries 9799
Copyright (c) 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005,
2006, 2007, 2008, 2009, 2010, 2011
The NetBSD Foundation, Inc. All rights reserved.
Copyright (c) 1982, 1986, 1989, 1991, 1993
The Regents of the University of California. All rights reserved.
NetBSD 5.99.56 (RT3050) #0: Wed Oct 12 21:01:51 JST 2011
ryo@moveq:/src/cvs/NetBSD/sys/arch/evbmips/compile/RT3050
total memory = 32768 KB
avail memory = 28856 KB
mainbus0 (root): Ralink System Bus
cpu0 at mainbus0: 320.00MHz (hz cycles = 1600000, delay divisor = 160)
cpu0: MIPS 24KE (0x1964c) Rev. 76 with software emulated floating point
cpu0: 32 TLB entries, 256MB max page size
cpu0: 32KB/32B 4-way set-associative L1 instruction cache
cpu0: 16KB/32B 4-way set-associative write-back L1 data cache
rwdog0 at mainbus0: Ralink watchdog controller
rwdog0: max period 40 sec.
rwdog0: KTICKLE mode, period -30 sec.
rgpio0 at mainbus0: Ralink GPIO controller
gpio0 at rgpio0: 98 pins
ri2c0 at mainbus0: Ralink I2C controller
iic0 at ri2c0: I2C bus
com0 at mainbus0: Au1X00 UART, working fifo
com0: console
ohci0 at mainbus0: OHCI USB controller
ohci0:
2011-09-29 CTIO
クティオのスペルはctioと書くようだ。
ピン配置は写真左から、VCC,RX,GND,TX。38400bps。
とりあえずシリアルは取れたが、Ether生えてないんだよなぁ。どうしよう。kermitやらs-recordでserial経由で送れるっぽいのでなんとかなるか。
U-Boot 1.1.4 (Jan 23 2009 - 12:09:13)
U-Boot code: 00000000 -> 0001A50C BSS: -> 0001F45C
CPU Clock: 200 MHz
1.8V Vdd Output: 1.793
2.5V Vdd Output: 2.531
RAM Configuration:
Bank #0: 00000000 32 MB
Flash Manufacturer: EON
Flash Device: MXLV640BB(8MB)
Flash: 8 MB
In: serial
Out: serial
Err: serial
Hit any key to stop autoboot: 0
Star Dorado2 # ?
? - alias for 'help'
autoscr - run script from memory
base - print or set address offset
bdinfo - print Board Info structure
boot - boot default, i.e., run 'bootcmd'
bootd - boot default, i.e., run 'bootcmd'
bootm - boot application image from memory
bootp - boot image via network using BootP/TFTP protocol
cmp - memory compare
coninfo - print console devices and information
cp - memory copy
crc32 - checksum calculation
echo - echo args to console
erase - erase FLASH memory
flinfo - print FLASH memory information
go - start application at address 'addr'
help - print online help
iminfo - print header information for application image
imls - list all images found in flash
itest - return true/false on integer compare
loadb - load binary file over serial line (kermit mode)
loads - load S-Record file over serial line
loop - infinite loop on address range
md - memory display
mm - memory modify (auto-incrementing)
mtest - simple RAM test
mw - memory write (fill)
nfs - boot image via network using NFS protocol
nm - memory modify (constant address)
pci - list and access PCI Configuration Space
ping - send ICMP ECHO_REQUEST to network host
printenv- print environment variables
protect - enable or disable FLASH write protection
rarpboot- boot image via network using RARP/TFTP protocol
reset - Perform RESET of the CPU
run - run commands in an environment variable
saveenv - save environment variables to persistent storage
setenv - set environment variables
sleep - delay execution for some time
tftpboot- boot image via network using TFTP protocol
version - print monitor version
Star Dorado2 # version
U-Boot 1.1.4 (Jan 23 2009 - 12:09:13)
Star Dorado2 # bdinfo
arch_number = 0x0000038E
env_t = 0x00000000
boot_params = 0x00000100
DRAM bank = 0x00000000
-> start = 0x00000000
-> size = 0x02000000
ethaddr = 00:0A:0B:0C:0D:10
ip_addr = 192.168.0.1
baudrate = 38400 bps
Star Dorado2 # printenv
bootargs=/dev/mtdblock3 ro cpufreq=200M rootfstype=squashfs console=ttyS0,38400
bootcmd=go 0x10040000
bootdelay=3
baudrate=38400
ethaddr=00:0a:0b:0c:0d:10
ipaddr=192.168.0.1
serverip=192.168.0.100
netmask=255.255.255.0
stdin=serial
stdout=serial
stderr=serial
Environment size: 261/65532 bytes
Star Dorado2 # pci
Scanning PCI devices on bus 0
BusDevFun VendorId DeviceId Device Class Sub-Class
_____________________________________________________________
00.00.00 0xeeee 0x0000 Does not fit any class 0x00
Star Dorado2 # iminfo
## Checking Image at 00100000 ...
Bad Magic Number
Star Dorado2 # flinfo
Bank # 1: EON MX29LV640BB (64Mbit)
Size: 8 MB in 135 Sectors
Sector Start Addresses:
10000000 (RO) 10002000 (RO) 10004000 (RO) 10006000 (RO) 10008000 (RO)
1000A000 (RO) 1000C000 (RO) 1000E000 (RO) 10010000 (RO) 10020000 (RO)
10030000 10040000 10050000 10060000 10070000
10080000 10090000 100A0000 100B0000 100C0000
100D0000 100E0000 100F0000 10100000 10110000
10120000 10130000 10140000 10150000 10160000
10170000 10180000 10190000 101A0000 101B0000
101C0000 101D0000 101E0000 101F0000 10200000
10210000 10220000 10230000 10240000 10250000
10260000 10270000 10280000 10290000 102A0000
102B0000 102C0000 102D0000 102E0000 102F0000
10300000 10310000 10320000 10330000 10340000
10350000 10360000 10370000 10380000 10390000
103A0000 103B0000 103C0000 103D0000 103E0000
103F0000 10400000 10410000 10420000 10430000
10440000 10450000 10460000 10470000 10480000
10490000 104A0000 104B0000 104C0000 104D0000
104E0000 104F0000 10500000 10510000 10520000
10530000 10540000 10550000 10560000 10570000
10580000 10590000 105A0000 105B0000 105C0000
105D0000 105E0000 105F0000 10600000 10610000
10620000 10630000 10640000 10650000 10660000
10670000 10680000 10690000 106A0000 106B0000
106C0000 106D0000 106E0000 106F0000 10700000
10710000 10720000 10730000 10740000 10750000
10760000 10770000 10780000 10790000 107A0000
107B0000 107C0000 107D0000 107E0000 107F0000
Star Dorado2 # coninfo
List of available devices:
serial 80000003 SIO stdin stdout stderr
Star Dorado2 #

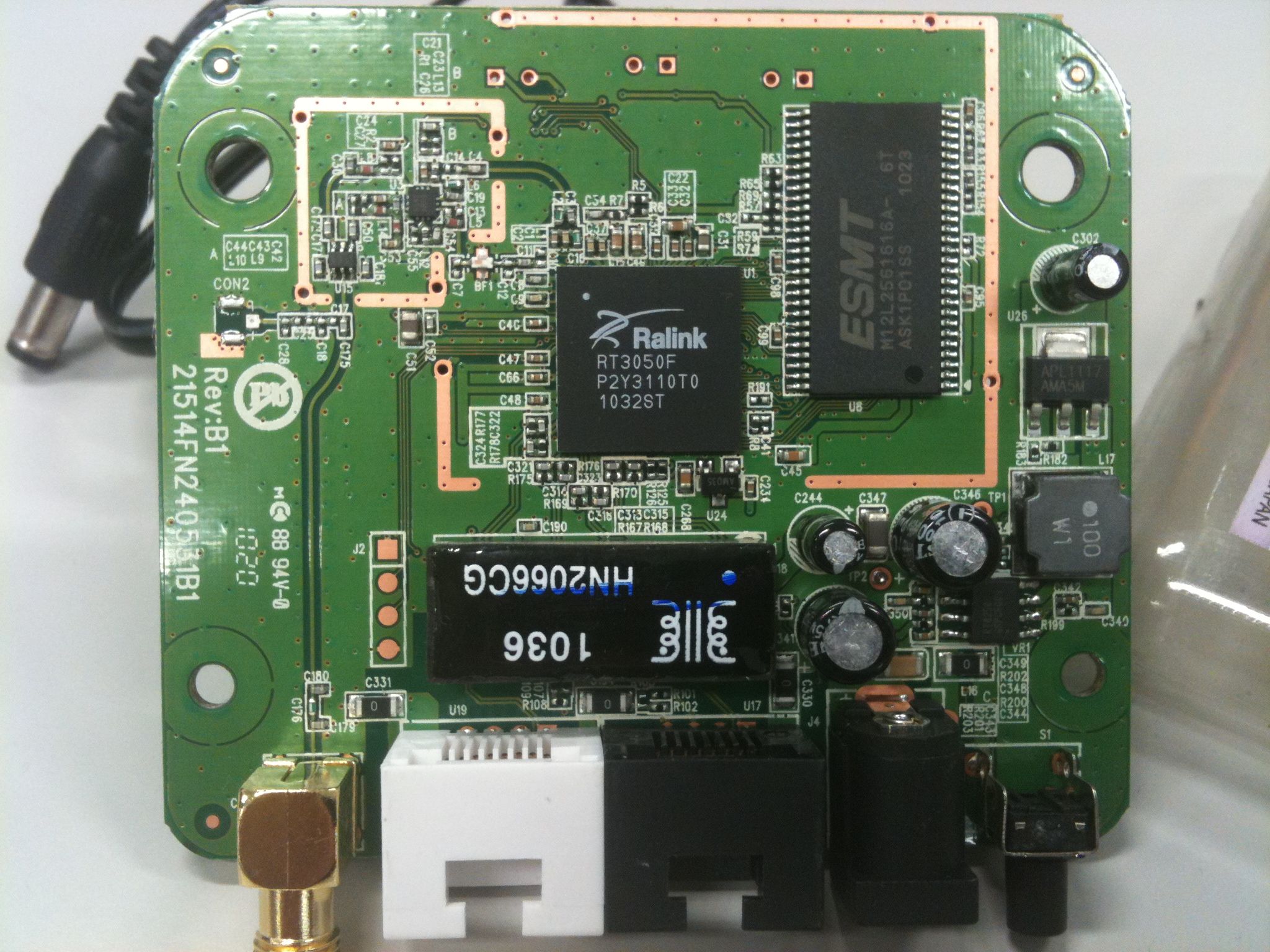

2011-05-23 NetBSD/FON2405E

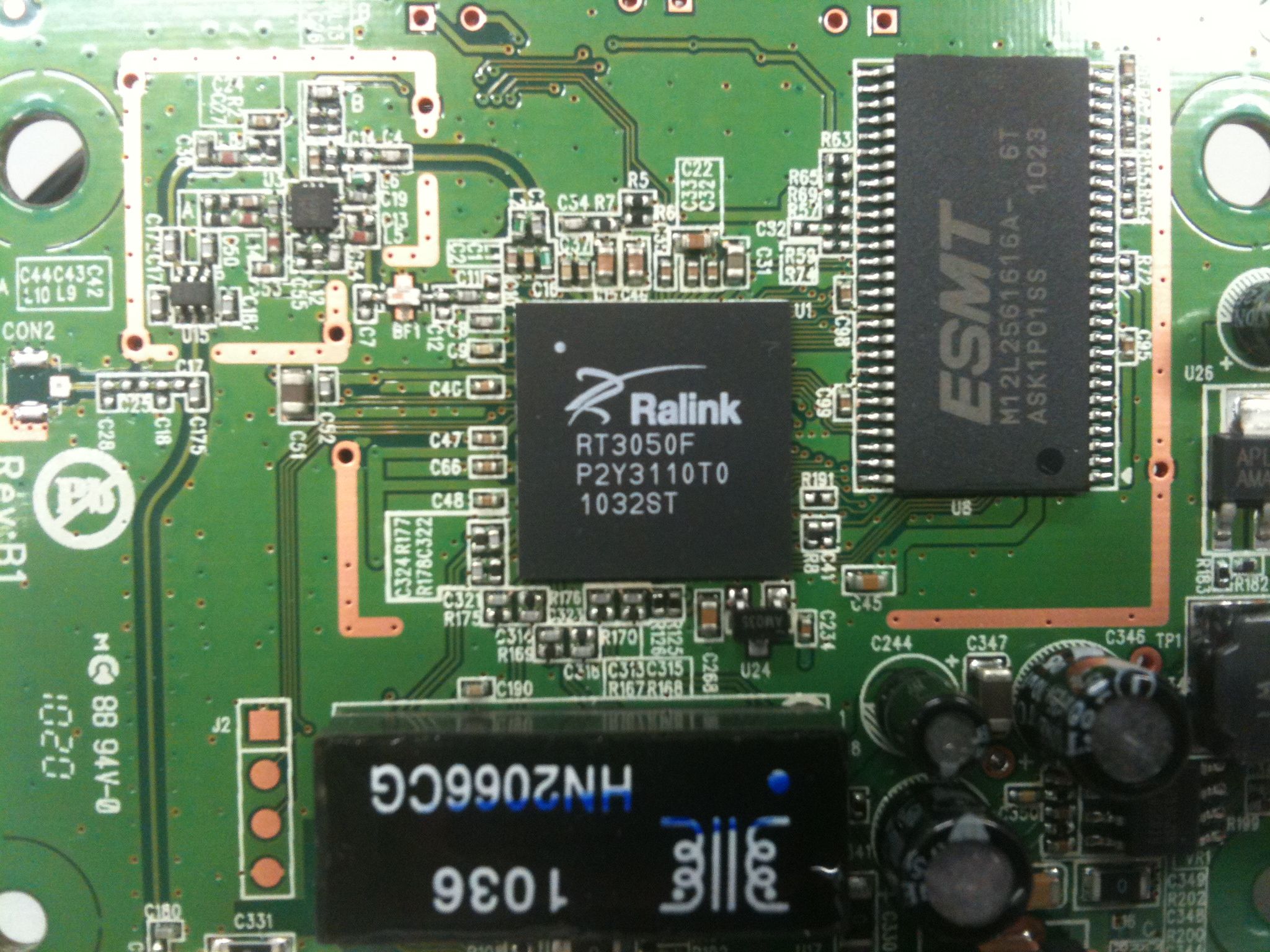

RT3050のpdfはRT3050/52 datasheetでググると出てくるのでゲットする。
とりあえずUARTのアドレスを調べる。10000500。
u-bootのプロンプトからテスト。
RT3052 # mm.l 10000504 10000504: 00000000 ? 40 10000508: 00000000 ? . RT3052 #
何も起こらない。UARTLITE(10000c00)というものがあるので、こっちか? と思い、再度トライ。
RT3052 # mm.l 10000c04 10000c04: 0000003a ? 40 @10000c08: 00000000 ? . RT3052 #
ビンゴー(@)。というわけで、シリアルコンソールはUARTLITEを使っているようだ。
- やる気をチャージ←イマココ
- buildできるようにするためのkernel config/md関連のファイルを書く
- UARTLITEに文字を出すプログラムでbootテスト
- RT3050関連のincludeファイルを書く
- UARTドライバを書く。16550互換なのでcomのwrapperで済む(はず)
- mips core部分はちゃんと動くのかチェック
- copyrightまで動かす
- mountrootまで動かす
- 割り込みを動かす
- etherのデバドラを書く
- nfsbootさせる
- multiuserで上げる
- その他のデバドラを書く
- wifiのデバドラを書く
- 終わり
2011-01-21 NetBSD/netwalker #4
というわけで @h_kenken 氏から指摘があって実はシリアルの結線が間違っていたことがわかり、
ちゃんと配線するとシリアル入出力ともにちゃんと動きました。
そしてboot時に ^C を押すとあっさり RedBoot に落ちれました。あぁ…
以下、デフォルト状態のboot script
というわけで、fcofnig で Boot script を false にしたり、中身を sdstart にしたりすると、
デフォで RedBoot が上がってきたりSDカードからBootしたりできます。これでちょっとは楽になる?
ちゃんと配線するとシリアル入出力ともにちゃんと動きました。
そしてboot時に ^C を押すとあっさり RedBoot に落ちれました。あぁ…
++Initializing SPI-NOR flash...
JEDEC ID: 0xbf:0x25:0x41
SPI NOR: block_size=0x10000, blocks=0x20, start=0x00000000, end=0x00200000
... Read from 0x1fef0000-0x1ff00000 at 0x00080000: .
... Read from 0x1fee3000-0x1fee4000 at 0x0008f000: .
PMIC ID: 0x000045d0 [Rev: 2.0a]
[Warning] FEC not connect right PHY: ID=ffffffff
No network interfaces found
Reset reason: Power-on reset
fis/fconfig from SPI-NOR
Boot switch: INTERNAL
EXPANSION: SPI-NOR: eCSPI1
RedBoot(tm) bootstrap and debug environment [ROMRAM]
Non-certified release, version FSL 200929 - built 21:29:52, Sep 9 2009
Platform: MX51 SHARP PC-Z1 [1.000] (Freescale i.MX51 based) PASS 2.0 [x32 DDR]
Copyright (C) 2000, 2001, 2002, 2003, 2004 Red Hat, Inc.
Copyright (C) 2003, 2004, 2005, 2006 eCosCentric Limited
RAM: 0x00000000-0x1ff00000, [0x000a7bc8-0x1fee1000] available
FLASH: 0x00000000 - 0x200000, 32 blocks of 0x00010000 bytes each.
== Executing boot first script abort ==
== Executing boot script in 0.000 seconds - enter ^C to abort
RedBoot> ^C
RedBoot> ^C
RedBoot> ^C
RedBoot> ^C
RedBoot> help
Setup/Display clock
Syntax:
clock [<core clock in MHz> :<DDR clock in MHz>]
Examples:
[clock] -> Show various clocks
[clock 665] -> Core=665
[clock 800:133] -> Core=800 DDR=133
[clock :166] -> Core=no change DDR=166
console ON/OFF
console <ON/OFF>
EXT2 debug mode
dbg_e2fs <mode>
EXT2 sector read
dbg_e2fs_read sector
SDRAM calib
ddr2calib
L2 cache
L2 [ON | OFF]
AD input
adin <channel> {-l low-limit} {-u up-limit}
Manage aliases kept in FLASH memory
alias name [value]
Set/Query the system console baud rate
baudrate [-b <rate>]
Manage machine caches
cache [ON | OFF]
Display/switch console channel
channel [-1|<channel number>]
Compute a 32bit checksum [POSIX algorithm] for a range of memory
cksum -b <location> -l <length>
Display disks/partitions.
disks
Display (hex dump) a range of memory
dump -b <location> [-l <length>] [-s] [-1|-2|-4]
Execute an image - with MMU off
exec [-w timeout] [-b <load addr> [-l <length>]]
[-r <ramdisk addr> [-s <ramdisk length>]]
[-c "kernel command line"] [-t <target> ] [<entry_point>]
Manage FLASH images
fis {cmds}
Manage configuration kept in FLASH memory
fconfig [-i] [-l] [-n] [-f] [-d] | [-d] nickname [value]
blow some fuses
fuse_blow <bank> <row> <value>
read some fuses
fuse_read <bank> <row>
Execute code at a location
go [-w <timeout>] [-c] [-n] [entry]
Help about help?
help [<topic>]
Display command history
history
Set/change IP addresses
ip_address [-b] [-l <local_ip_address>[/<mask_len>]] [-h <server_address>]
Load a file
load [-r] [-v] [-z to swap endianness on 16 bit] [-d] [-h <host>] [-p <TCP port>][-m <varies>] [-c <channel_number>]
[-b <base_address>] <file_name>
Compare two blocks of memory
mcmp -s <location> -d <location> -l <length> [-1|-2|-4] {-f}
Copy memory from one address to another
mcopy -s <location> -d <location> -l <length> [-1|-2|-4]
Fill a block of memory with a pattern
mfill -b <location> -l <length> -p <pattern> [-1|-2|-4]
Read/Write MMC/SD card
sdhc <ram-addr> <flash-addr> <len-bytes> <r/w>
Utility function to NAND flash using raw address
nand {cmds}
Network connectivity test
ping [-v] [-n <count>] [-l <length>] [-t <timeout>] [-r <rate>]
[-i <IP_addr>] -h <IP_addr>
Read/Write internal PMIC register
pmic <reg num> [value to be written]
Power OFF
poweroff
Reset the system
reset
start from SD
sdstart <-c "kernel command line"> <-f conf> <-s slot1/2>
Read/Write/Erase SPI NOR flash
spiflash <ram-addr> <flash-addr> <len-bytes> <r/w/e>
Display RedBoot version information
version
Display (hex dump) a range of memory
x -b <location> [-l <length>] [-s] [-1|-2|-4]
Enable one flash media for Redboot
factive [MMC|SPI]
GPIO read
gpio <group>
GPIO write
gpiow <group> <offset> <data>
read info from Serial-Flash
inforead -o <offset> {-l <length> [-1|-2|-3|-4]} {-b <ram-address>}
wtite info to Serial-Flash
infowrite -o <offset> <value> {-l <length> [-1|-2|-3|-4]} {-b <ram-address>}
IOMUX read
iomux <offset> [<length>]
IOMUX write
iomuxw <offset> <data>
Update Redboot with currently running image
romupdate
Run an image at a location with MMU off
run [<virtual addr>]
SDRAM test
sdramtest <start-address> <length>
SD/MMC read image from specify address
sdread -f <sd address>/-o <sd sector> -b <ram address> -l <length> [-s <slot 1/2>]
SD/MMC register DISK
sdregister <slot 1/2>
SD/MMC update Redboot by specify address
sdupdate <address> [-p <forcepart>] [-c <slot 1/2>]
SD/MMC write image by specify address
sdwrite -f <sd address>/-o <sd sector> -b <ram address> -l <length> [-s <slot 1/2>]
Set FEC MAC address in Fuse registers
set_fecmac [0x##:0x##:0x##:0x##:0x##:0x##]
Serial-Flash update Redboot by specify address
sromupdate <address>
RedBoot> clock
PLL1 PLL2 PLL3
========================================
800000000 665000000 216000000
CPU AHB IPG EMI_CLK
========================================================
800000000 133000000 66500000 200000000
NFC USB IPG_PER_CLK
========================================
26600000 54000000 24000000
UART1-3 SSI1 SSI2 SPI
========================================================
66500000 54000000 54000000 54000000
以下、デフォルト状態のboot script
Boot first script: .. adin 5 -l 6800
Boot script: .. nand init .. nand read -f 0x00000000 -b 0x00800000 -l 0x00500000 .. exec -b 0x00800000 -l 0x00500000 -c "noinitrd console=ttymxc0,115200 ubi.mtd=4 root=ubi0:rootfs rw rootfstype=ubifs"
というわけで、fcofnig で Boot script を false にしたり、中身を sdstart にしたりすると、
デフォで RedBoot が上がってきたりSDカードからBootしたりできます。これでちょっとは楽になる?
2011-01-12 FON2405E で u-boot
いじってたらu-boot プロンプトに来れた。
- タクトスイッチを押しながら電源ON
- スイッチを押し続けている間は、Please choose ... 1:〜 2:〜 3:〜 の所で止まるので、押し続けたまま、コンソールから 「3」を押す
- タクトスイッチを離す
- u-bootのプロンプトに入れた
U-Boot 1.1.3 (Jan 6 2010 - 07:10:30)
Board: Fonera
DRAM: 32 MB
relocate_code Pointer at: 81fac000
spi_wait_nsec: 3e
spi deice id: c2 20 15 c2 20 (2015c220)
find flash: mx25l1605d
raspi_read: from:41030000 len:1000
Using default environment
##### The CPU freq = 320 MHZ ####
SDRAM bus set to 16 bit
SDRAM size =32 Mbytes
Please choose the operation:
1: Boot system code via Flash (default).
2: Load system code then write to Flash via TFTP.
3: Entr boot command line interface.
reset pressed for 2 seconds
You selected 3
0
3: System Enter Boot Command Line Interface.
U-Boot 1.1.3 (Jan 6 2010 - 07:10:30)
RT3052 #
RT3052 #
RT3052 # ?
erase - erase SPI FLASH memory
? - alias for 'help'
bootm - boot application image from memory
cp - memory copy
go - start application at address 'addr'
help - print online help
httpd - start webserver
md - memory display
mm - memory modify (auto-incrementing)
mw - memory write (fill)
nm - memory modify (constant address)
printenv- print environment variables
reset - Perform RESET of the CPU
setenv - set environment variables
tftpboot- boot image via network using TFTP protocol
version - print monitor version
RT3052 # help set
setenv name value ...
- set environment variable 'name' to 'value ...'
setenv name
- delete environment variable 'name'
RT3052 # printenv
bootcmd=httpd
bootdelay=2
baudrate=57600
ethaddr="00:AA:BB:CC:DD:10"
ipaddr=10.10.10.200
serverip=10.10.10.3
ramargs=setenv bootargs root=/dev/ram rw
addip=setenv bootargs $(bootargs) ip=$(ipaddr):$(serverip):$(gatewayip):$(netmask):$(hostname):$(netdev):off
addmisc=setenv bootargs $(bootargs) console=ttyS0,$(baudrate) ethaddr=$(ethaddr) panic=1
flash_self=run ramargs addip addmisc;bootm $(kernel_addr) $(ramdisk_addr)
kernel_addr=BFC20000
bootfile=fonita.img
u-boot=u-boot.bin
load=tftp 8A100000 $(u-boot)
u_b=protect off 1:0-1;era 1:0-1;cp.b 8A100000 BC400000 $(filesize)
loadfs=tftp 8A100000 root.cramfs
u_fs=era bc540000 bc83ffff;cp.b 8A100000 BC540000 $(filesize)
test_tftp=tftp 8A100000 root.cramfs;run test_tftp
stdin=serial
stdout=serial
stderr=serial
ethact=Eth0 (10/100-M)
Environment size: 786/4092 bytes
RT3052 # version
U-Boot 1.1.3 (Jan 6 2010 - 07:10:30)
2011-01-11 FON2405E
記憶に無いがなぜか家にころがってたのでとりあえず分解。
シリアルは、コネクタ脇にある4つのランド。コネクタ側から、GND,TX,RX,VCC。57600bps で接続。
U-Boot 1.1.3 (Jan 6 2010 - 07:10:30)
Board: Fonera
DRAM: 32 MB
relocate_code Pointer at: 81fac000
spi_wait_nsec: 3e
spi deice id: c2 20 15 c2 20 (2015c220)
find flash: mx25l1605d
raspi_read: from:41030000 len:1000
Using default environment
##### The CPU freq = 320 MHZ ####
SDRAM bus set to 16 bit
SDRAM size =32 Mbytes
Please choose the operation:
1: Boot system code via Flash (default).
2: Load system code then write to Flash via TFTP.
3: Entr boot command line interface.
booting from flash
## Booting image at bf020000 ...
raspi_read: from:20000 len:40
Image Name: MIPS OpenWrt Linux-2.6.21
Created: 2010-08-18 11:54:31 UTC
Image Type: MIPS Linux Kernel Image (lzma compressed)
Data Size: 613782 Bytes = 599.4 kB
Load Address: 80000000
Entry Point: 80000000
raspi_read: from:20040 len:95d96
Verifying Checksum ... OK
Uncompressing Kernel Image ... OK
No initrd
## Transferring control to Linux (at address 80000000) ...
## Giving linux memsize in MB, 32
Starting kernel ...
LINUX started...
THIS IS ASIC
Linux version 2.6.21 (eduardo@veriton) (gcc version 4.1.2) #1 Wed Aug 18 13:54:20 CEST 2010
The CPU feqenuce set to 320 MHz
CPU revision is: 0001964c
Determined physical RAM map:
memory: 02000000 @ 00000000 (usable)
Built 1 zonelists. Total pages: 8128
Kernel command line: console=ttyS1,57600n8 root=/dev/mtdblock4 init=/sbin/preinit
Primary instruction cache 32kB, physically tagged, 4-way, linesize 32 bytes.
Primary data cache 16kB, 4-way, linesize 32 bytes.
Synthesized TLB refill handler (20 instructions).
Synthesized TLB load handler fastpath (32 instructions).
Synthesized TLB store handler fastpath (32 instructions).
Synthesized TLB modify handler fastpath (31 instructions).
Cache parity protection disabled
cause = 80800060, status = 1100ff00
PID hash table entries: 128 (order: 7, 512 bytes)
calculating r4koff... 0030d400(3200000)
CPU frequency 320.00 MHz
Using 160.000 MHz high precision timer.
Dentry cache hash table entries: 4096 (order: 2, 16384 bytes)
Inode-cache hash table entries: 2048 (order: 1, 8192 bytes)
Memory: 30416k/32768k available (1689k kernel code, 2352k reserved, 186k data, 100k init, 0k highmem)
Mount-cache hash table entries: 512
NET: Registered protocol family 16
Generic PHY: Registered new driver
NET: Registered protocol family 2
Time: MIPS clocksource has been installed.
IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
TCP established hash table entries: 1024 (order: 1, 8192 bytes)
TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
TCP: Hash tables configured (established 1024 bind 1024)
TCP reno registered
was not able to assign mahjor 200 to button chardev
ramips_gpio: done
squashfs: version 3.2-r2 (2007/01/15) Phillip Lougher
squashfs: LZMA suppport for slax.org by jro
io scheduler noop registered
io scheduler deadline registered (default)
ramips_wdt: loaded
Serial: 8250/16550 driver $Revision: 1.61 $ 2 ports, IRQ sharing disabled
serial8250: ttyS0 at I/O 0xb0000500 (irq = 37) is a 16550A
serial8250: ttyS1 at I/O 0xb0000c00 (irq = 12) is a 16550A
PPP generic driver version 2.4.2
NET: Registered protocol family 24
tun: Universal TUN/TAP device driver, 1.6
tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
deice id : c2 20 15 c2 20 (2015c220)
mx25l3205d(c2 20160000) (4096 Kbytes)
mtd .name = raspi, .size = 0x00400000 (4M) .erasesize = 0x00010000 (64K) .numeraseregions = 0
ramips_mtd: kernel size is 613846
padded kernel is 00096000
Creating 6 MTD partitions on "raspi":
0x00000000-0x00010000 : "uboot"
0x00010000-0x00020000 : "boardconfig"
0x00020000-0x00200000 : "image"
0x00020000-0x000b6000 : "linux"
mtd: partition "linux" doesn't end on an erase block -- force read-only
0x000b6000-0x001f0000 : "rootfs"
mtd: partition "rootfs" doesn't start on an erase block boundary -- force read-only
mtd: partition "rootfs" set to be root filesystem
0x001f0000-0x00200000 : "uci_overlay"
Registered led device: power
Registered led device: wps
Registered led device: wlan
nf_conntrack version 0.5.0 (256 buckets, 2048 max)
IPv4 over IPv4 tunneling driver
ip_tables: (C) 2000-2006 Netfilter Core Team, Type=Linux
TCP cubic registered
NET: Registered protocol family 1
NET: Registered protocol family 17
802.1Q VLAN Support v1.8 Ben Greear <greearb@candelatech.com>
All bugs added by David S. Miller <davem@redhat.com>
ramips: ethernet loaded
ramips_eth: loaded
VFS: Mounted root (squashfs filesystem) readonly.
Freeing unused kernel memory: 100k freed
Warning: unable to open an initial console.
Preinit complete, spawning microd
found uci_overlay -> /dev/mtd5
i found OPENWRT_UCI_OVERLAY inside /dev/mtd5
loading file zepttho 275
loading file wireless 696
loading file user 70
loadingAlgorithmics/MIPS FPU Emulator v1.5
file system 72
loading file reg 16
loading file network 473
loading file led 342
loading file lang 33
loading file form 4768
loading file fonsmcd 290
loading file fon 406
loading file firewall 907
loading file passwd 149
loading file chilli.conf 566
loading fon config
Spawning syslogd
registering led wps -> /sys/class/leds/wps/
registering led wlan -> /sys/class/leds/wlan/
registering led power -> /sys/class/leds/power/
loading base firewall ...iptables: Chain already exists
done
adding zone wannet
adding zone lan
adding zone wan
adding zone hotspotwifi
adding zone hotspot
adding forwarding lan->wan
adding forwarding hotspot->wan
interface loopback
proto = static
ipaddr = 127.0.0.1
netmask = 255.0.0.0
ifname = lo
interface lan
proto = static
ipaddr = 192.168.10.1
netmask = 255.255.255.0
ifname = eth0.1
type = bridge
interface wan
proto = dhcp
ifname = eth0.2
interface hotspot
ifname = tun0
interface hotspotwifi
proto = none
ifname = ra1
net event up loopback ...bringing up lo
done
net event up lan ...bringing ueth0.1: dev_set_promiscuity(master, 1)
p eth0.1
device eth0 entered promiscuous mode
device eth0.1 entered promiscuous mode
br-lan: port 1(eth0.1) entering learning state
adding br-lan to zone lan
done
net event up wan ...bringing up eth0.2
Spawning udhcpc for eth0.2
udhcpc (v0.9.9-pre) started
Trying to connect...
sending -> "udhcpc|deconfig|eth0.2|"
adding eth0.2 to zone wan
Sending discover...
done
wifi device rt305x
type = rt305x
channel = 11
mode = 9
wifi interface public
ifname = ra1
ssid = FON_FREE_INTERNET
encryption = none
network = hotspotwifi
device = rt305x
isolate = 1
auto = 1
wifi interface private
ifname = ra0
ssid = MyPlace
encryption = wpa-wpa2
key = 4141414141
password = uraehaithe
wpa_crypto = mixed
network = lan
device = rt305x
channel = 0
mode = bgn
txpower = 100
br-lan: topology change detected, propagating
br-lan: port 1(eth0.1) entering forwarding state
rt2860v2_ap: module license 'unspecified' taints kernel.
Sending discover...
WSending discover...
0x1300 = 00064380
bringing up rt30device ra0 entered promiscuous mode
5x ...done
br-lan: port 2(ra0) entering learning state
Terminate the task(RtmpCmdQTask) with pid(202)!
Terminate the task(RtmpWscTask) with pid(203)!
br-lan: port 2(ra0) entering disabled state
WTrying to connect...
sending -> "udhcpc|leasefail|eth0.2|"
0x1300 = 00064380
br-lan: port 2(ra0) entering learning state
br-lan: topology change detected, propagating
br-lan: port 2(ra0) entering forwarding state
bringing up private ...done
configured coova for mac 00:18:84:**:**:**
Spawning dnsmasq
DHCP server is enabled
Spawning fonsmcd
Spawning zepttho
Spawning Onlined
_______ ________ __
| |.-----.-----.-----.| | | |.----.| |_
| - || _ | -__| || | | || _|| _|
|_______|| __|_____|__|__||________||__| |____|
|__| W I R E L E S S F R E E D O M
KAMIKAZE (bleeding edge, r3989) -------------------
* 10 oz Vodka Shake well with ice and strain
* 10 oz Triple sec mixture into 10 shot glasses.
* 10 oz lime juice Salute!
---------------------------------------------------
I booted userland in 13 seconds
System bring up complete
syslogd: Jan 1 00:00:03 udhcpc[183]: udhcpc (v0.9.9-pre) started
deconfigure eth0.2
syslogd: Jan 1 00:00:03 udhcpc[183]: Sending discover...
syslogd: Jan 1 00:00:05 udhcpc[183]: Sending discover...
syslogd: Jan 1 00:00:07 udhcpc[183]: Sending discover...
syslogd: Nov 5 20:07:16 syslog: starting onlined
Now serving files from /www on :80
syslogd: Nov 5 20:07:16 dnsmasq[208]: started, version 2.45 cachesize 150
syslogd: Nov 5 20:07:16 dnsmasq[208]: compile time options: IPv6 GNU-getopt ISC-leasefile no-DBus no-I18N no-TFTP
syslogd: Nov 5 20:07:16 dnsmasq[208]: DHCP, IP range 192.168.10.50 -- 192.168.10.250, lease time 12h
syslogd: Nov 5 20:07:16 syslog: ERROR: unable access whitelist file: /etc/fon/whitelist.dnsmasq
syslogd: Nov 5 20:07:16 dnsmasq[208]: using local addresses only for domain lan
syslogd: Nov 5 20:07:16 dnsmasq[208]: reading /tmp/resolv.conf
syslogd: Nov 5 20:07:16 dnsmasq[208]: using nameserver 192.168.1.1#53
syslogd: Nov 5 20:07:16 dnsmasq[208]: using local addresses only for domain lan
syslogd: Nov 5 20:07:16 dnsmasq[208]: read /etc/hosts - 2 addresses
syslogd: Nov 5 20:07:16 dnsmasq[208]: failed to read /etc/ethers:No such file or directory
fonsmcd[209]: (Main) WARNING: SMC_find_boarddata: found board config /dev/mtd1ro
SMC_init(): called
fonsmcd[209]: (Main) MESSAGE: SMC_reload()
.W.....W.....fonsmcd[209]: (Main) WARNING: SMC_add_host: Error resolving host [cthulhu.fon.com], will try later
fonsmcd[209]: (Main) MESSAGE: SMC_retrieve_query_data()
fonsmcd[209]: (Main) WARNING: SMC_find_boarddata: found board config /dev/mtd1ro
wlanmac [00-18-84-e8-b8-85]
key_number [20965f2290dd6caae07f8f5e23d7911d34f49449470c6d6abc684d9d416a1521]
fonsmcd[209]: (Main) WARNING: SMC_find_boarddata: found board config /dev/mtd1ro
W.....W.....W..fonsmcd[209]: (Main) CRITICAL: SMC_send_buffer: Error resolving host [cthulhu.fon.com]
...W.....W.....W...fonsmcd[209]: (Main) CRITICAL: SMC_send_buffer: Error resolving host [cthulhu.fon.com]
..W..
-------
load 7968 2752 800
ram 24068096/31248384
uptime 0 - 00:00:59
...W.....W....fonsmcd[209]: (Main) CRITICAL: SMC_send_buffer: Error resolving host [cthulhu.fon.com]
.WSending discover...
syslogd: Nov 5 20:08:12 udhcpc[183]: Sending discover...
..Sending discover...
syslogd: Nov 5 20:08:14 udhcpc[183]: Sending discover...
..Sending discover...
syslogd: Nov 5 20:08:17 udhcpc[183]: Sending discover...
W....Trying to connect...
sending -> "udhcpc|leasefail|eth0.2|"
.W.....fonsmcd[209]: (Main) CRITICAL: SMC_send_buffer: Error resolving host [cthulhu.fon.com]
W.....W.....W.....W.fonsmcd[209]: (Main) CRITICAL: SMC_send_buffer: Error resolving host [cthulhu.fon.com]
fonsmcd[209]: (Main) MESSAGE: TRIGGER [offline]
Trying to connect...
sending -> "hotspot|stop|"
hotspot event stop
hotspot_stop_count -> 1
....W.....W...
-------
load 3072 2048 448
ram 24068096/31248384
uptime 0 - 00:01:55
..W..fonsmcd[209]: (Main) CRITICAL: SMC_send_buffer: Error resolving host [cthulhu.fon.com]
fonsmcd[209]: (Main) MESSAGE: TRIGGER [offline]
...W.....W.....W...fonsmcd[209]: (Main) CRITICAL: SMC_send_buffer: Error resolving host [cthulhu.fon.com]
fonsmcd[209]: (Main) MESSAGE: TRIGGER [offline]
..W...Sending discover...
syslogd: Nov 5 20:09:21 udhcpc[183]: Sending discover...
.W.Sending discover...
syslogd: Nov 5 20:09:23 udhcpc[183]: Sending discover...
..Sending discover...
syslogd: Nov 5 20:09:25 udhcpc[183]: Sending discover...
..W..Trying to connect...
sending -> "udhcpc|leasefail|eth0.2|"
..fonsmcd[209]: (Main) CRITICAL: SMC_send_buffer: Error resolving host [cthulhu.fon.com]
fonsmcd[209]: (Main) MESSAGE: TRIGGER [offline]
とりあえずシリアル繋げてbootさせただけ。いじって遊べるかどうかは後日。
2011-01-04 NetBSD config(9) checker
NetBSDのconfig(9)のスタイルチェック用のscriptを書いた。
だって気になるんですよoptionsの後ろにスペースが無かったり無意味な所にスペースがあったりしてて。
% configstyle /usr/src/sys/arch/i386/conf/GENERIC /usr/src/sys/arch/i386/conf/GENERIC:25: Warning: don't use <space> after "ident" /usr/src/sys/arch/i386/conf/GENERIC:30: Warning: don't use <space> after "no options" /usr/src/sys/arch/i386/conf/GENERIC:30: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:31: Warning: don't use <space> after "no options" /usr/src/sys/arch/i386/conf/GENERIC:31: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:32: Warning: don't use <space> after "no options" /usr/src/sys/arch/i386/conf/GENERIC:32: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:33: Warning: don't use <space> after "no options" /usr/src/sys/arch/i386/conf/GENERIC:101: Warning: don't use <space> after "no options" /usr/src/sys/arch/i386/conf/GENERIC:102: Warning: don't use <space> after "no options" /usr/src/sys/arch/i386/conf/GENERIC:133: Warning: don't use <space> after "makeoptions" /usr/src/sys/arch/i386/conf/GENERIC:217: Warning: use <space> instead of <tab> after "options" /usr/src/sys/arch/i386/conf/GENERIC:347: Warning: don't use <space> after "acpi0" /usr/src/sys/arch/i386/conf/GENERIC:386: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:395: Warning: use <space> instead of <tab> after "wmimsi*" /usr/src/sys/arch/i386/conf/GENERIC:458: Warning: don't use <space> after "gpio*" /usr/src/sys/arch/i386/conf/GENERIC:465: Warning: don't use <space> after "hpet*" /usr/src/sys/arch/i386/conf/GENERIC:469: Warning: don't use <space> after "hpet*" /usr/src/sys/arch/i386/conf/GENERIC:471: Warning: don't use <space> after "gpio*" /usr/src/sys/arch/i386/conf/GENERIC:484: Warning: don't use <space> after "agp*" /usr/src/sys/arch/i386/conf/GENERIC:492: Warning: don't use <space> after "isa0" /usr/src/sys/arch/i386/conf/GENERIC:493: Warning: don't use <space> after "isa0" /usr/src/sys/arch/i386/conf/GENERIC:560: Warning: don't use <space> after "unichromefb*" /usr/src/sys/arch/i386/conf/GENERIC:561: Warning: don't use <space> after "wsdisplay*" /usr/src/sys/arch/i386/conf/GENERIC:570: Warning: use <space> instead of <tab> after "mgadrm*" /usr/src/sys/arch/i386/conf/GENERIC:574: Warning: use <space> instead of <tab> after "sisdrm*" /usr/src/sys/arch/i386/conf/GENERIC:576: Warning: use <space> instead of <tab> after "viadrm*" /usr/src/sys/arch/i386/conf/GENERIC:669: Warning: don't use <space> after "aps0" /usr/src/sys/arch/i386/conf/GENERIC:698: Warning: use <tab> after "ug0" /usr/src/sys/arch/i386/conf/GENERIC:765: Warning: don't use <space> after "spc*" /usr/src/sys/arch/i386/conf/GENERIC:768: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:840: Warning: don't use <space> after "aceride*" /usr/src/sys/arch/i386/conf/GENERIC:841: Warning: don't use <space> after "ahcisata*" /usr/src/sys/arch/i386/conf/GENERIC:842: Warning: don't use <space> after "artsata*" /usr/src/sys/arch/i386/conf/GENERIC:845: Warning: don't use <space> after "gcscide*" /usr/src/sys/arch/i386/conf/GENERIC:845: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:846: Warning: don't use <space> after "geodeide*" /usr/src/sys/arch/i386/conf/GENERIC:851: Warning: don't use <space> after "ahcisata*" /usr/src/sys/arch/i386/conf/GENERIC:853: Warning: don't use <space> after "optiide*" /usr/src/sys/arch/i386/conf/GENERIC:854: Warning: don't use <space> after "piixide*" /usr/src/sys/arch/i386/conf/GENERIC:863: Warning: don't use <space> after "svwsata*" /usr/src/sys/arch/i386/conf/GENERIC:876: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:948: Warning: don't use <space> after "bce*" /usr/src/sys/arch/i386/conf/GENERIC:950: Warning: don't use <space> after "bnx*" /usr/src/sys/arch/i386/conf/GENERIC:972: Warning: don't use <space> after "ndis*" /usr/src/sys/arch/i386/conf/GENERIC:1103: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:1230: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:1242: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:1248: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:1425: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:1513: Warning: use <tab> after "geodegcb*" /usr/src/sys/arch/i386/conf/GENERIC:1514: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:1515: Warning: use <tab> before "#" /usr/src/sys/arch/i386/conf/GENERIC:1567: Warning: use <space> instead of <tab> after "options"
EOF
